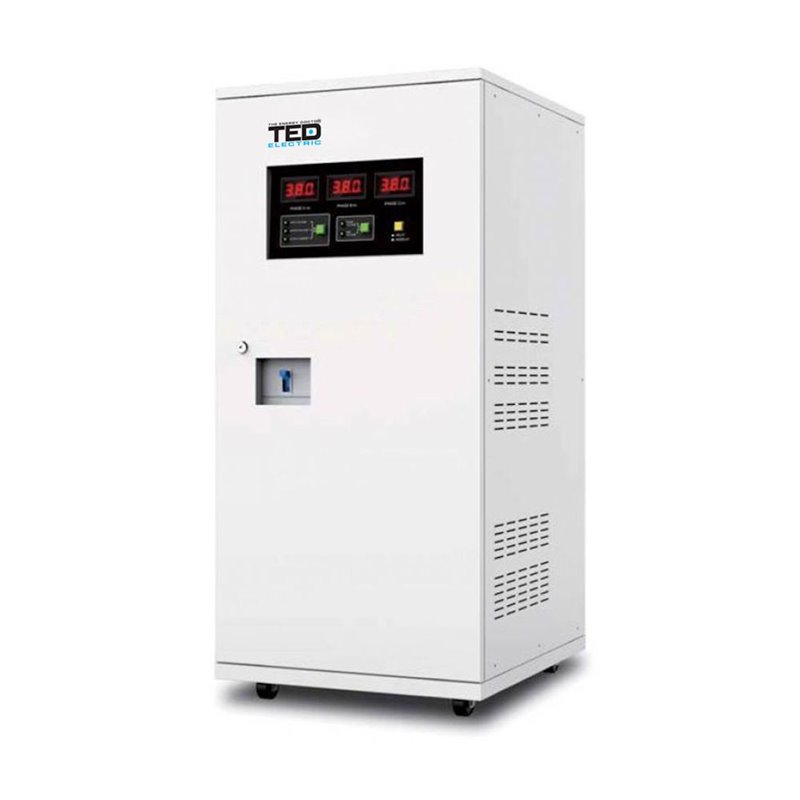

Stabilizator de tensiune cu servomotor 20KVA

Specifications

Single Phase compensation Servomotor technology
Three Digital display for input / output voltage / output current
Pure Sine Wave Output
Full protections over voltage and under voltage
Overload electronic protection and buzzer beeping
Shortcircuit protection by input cutoff -air breaker-
Isolated manual bypass switch
Selectable 6s/180s output delay
Wide AC input voltage range 155-260V
Input Power Factor: >0.95
Rated output voltage: 220V AC
Frequency range: 50Hz
Response time: <1 second
Connections: terminal block
Overload capability: 180 seconds 120% / 30 seconds 150% / 10 seconds 200% / 5 seconds 300%
Efficiency: 96 - 99%
Insulation voltage / resistance: 2000V / 60 seconds / >5mOhm
Ingress protection / Noise Level: IP20 / <65dB at 1m distance with full load
Operating Altitude: <1000m
Operating Humidity / Temperature: 0 - 90% non-condensing / -5 +45 degrees centigrade

TED20KSVC
Power (VA/W): 20000VA / 16000W
Dimensions D x W x H (mm): 565 x 333 x 525
Net Weight (kg): 100
