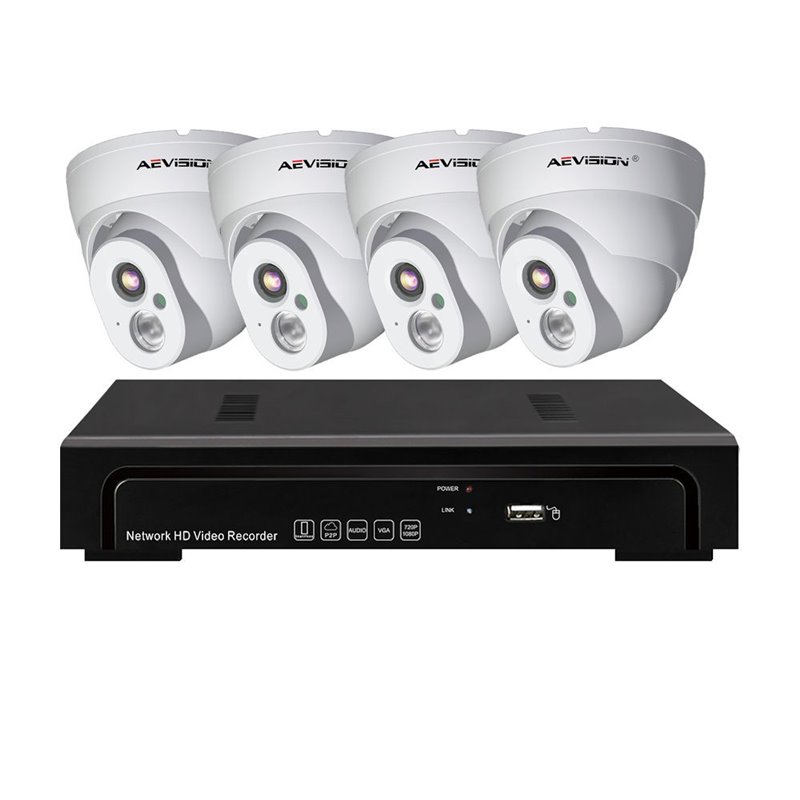

Sistem supraveghere video IP PoE 4 camere dome 1080P Aevision

Kitul contine:

1 x NVR 4 Canale POE AEVISION AE-N6100-4EP/48

Intrari video:      4×(1280*720) +sub[960*576]+4Ref.+4Play

                        4×(1280*960)+sub[960*576]+1Ref.+4Play

                        4×(1920*1080)+sub[960*576]+4Ref.+1Play

                        1×(1920*1080)+sub[960*576]+4Ref.+1Play

                        4×(720*576) +sub[352*288]+4Ref.+4Play

Iesiri video: 1ch VGA+1 port 1080P

Intrari / Iesiri audio: 4 intrari audio, 1 iesire audio RCA

Rezolutie vizualizare & inregistrare:  4ch 1080P/960P/720P/D1

Inregistrare: 30fps/ channel

Rezolutie playback:  4ch 720P/960P  sau  1ch 1080P

1 Port SATA × 4T SATA HDD - HDD nu este inclus

3 x porturi USB 2.0, iesire VGA, port 1080P

Suporta ONVIF;  suporta camere ip third-party

Suporta zoom digital 15x la vizualizare / playback

Suporta monitorizare din IE, din telefonul mobil

Dimensiune: 260mm×220mm×43mm / Greutate: 1.5Kg

Alimentare: 4ch POE, DC48V, 2A

4 x Camera IP Dome Full HD 1080P PoE Aevision AE-201J861HA-0104-VP

Caracteristici generale:

Carcasa proprietar, din aluminiu cu disipare a caldurii

Led infrarosu cu eficienta sporita si durata de functionare indelungata

Camera echipata cu tehnologie H.264, calitate superioara a imaginii de inalta definitie

Permite control de la distanta de pe telefonul mobil (iPhone, Android)

Se poate accesa prin IE, Chrome, Firefox, Safari

Compatibila ONVIF

Specificatii tehnice:

Chipset: Hisilicon HI3516C + Senzor SONY IMX323 CMOS 1/2.9"

Iluminare minima: 0Lux/F1.4 (cu ledul pornit)

Distanta IR: 10-15M (1x35mil Array IR Light)

Electronic Shutter: Auto/Manual (1/25~1/10000), FLK

Zi/Noapte: Auto/B/W/Color/EXT comutare filtru IR-Cut

Lentila: 4mm

Tip lentila: M12

S/N Ratio: ≥50db (AGC inchis)

Sistem TV: PAL/NTSC

WDR: D-WDR

Parametri video: Mirror, 3D NR, contrast/luminozitate ajustabile

Compresie Video

Compresie video: H.265/H.264/MJPEG

Encoding: Dual-stream: main stream: 1080@30fps, sub stream: D1@30fps

Pixeli efectivi: 1920X1080

Video Bit Rate: bit rate constant, bit rate variabil optional (16kbps-8000kbps)

Variante stream: Complex stream/Video stream

Functii retea

Date stocate: Video, Imagini

Mecanism stocare: Manual, automat (ciclic, programat, comutare alarma, detectie la miscare)

Transmitere date alarma: FTP, E-mail, Browser, Soft managment

Browser: IE6.0 si versiuni ulterioare

Numar utilizatori: 10 utilizatori concomitent

Monitorizare de la distanta: suporta iPhone, ipad, Android

Protocoale suportate: TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

Compatibil ONVIF: ONVIF2.4

Interfata

Interfata retea: RJ45 10M/100M adaptiva

General

Alimentare: DC12V / POE (alimentatorul nu este inclus)

Consum: <6W

Greutate: 380g
