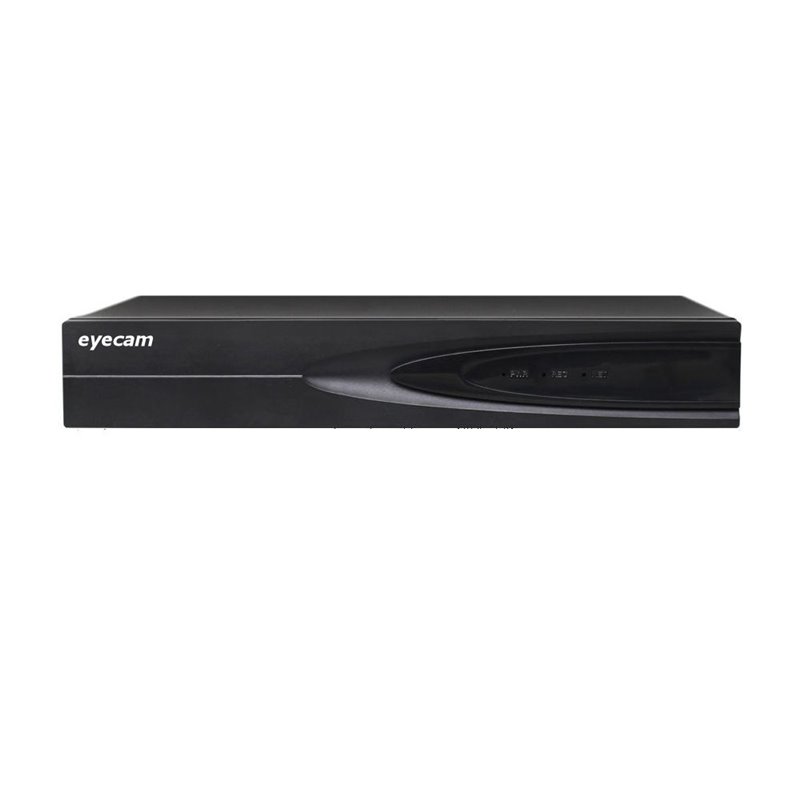

DVR 4 Canale Pentabrid 5 in 1 XVR AI 5MP Eyecam EC-XVR4119

Poate fi utilizat cu orice tehnologie: Analog / AHD / HD‐CVI / HD‐TVI / IP. AHD/TVI/CVI: 5MP@10fps. HD: 4MP@15fps. HD: 1080P/720P@15fps. Analog: 960H@25fps. IP: 5MP / 4MP / 3MP / 2MP / 1MP (Latime de banda ≤48M). AI: detectie faciala, aliniere faciala.

Caracteristici generale:

Poate fi utilizat cu orice tehnologie: Analog / AHD / HD‐CVI / HD‐TVI / IP

Tehnologie HD: Max 4CH@15fps / IP: Max 9CH@30fps / Analog: Max 6CH@30fps

Iesiri video: 1 x port HD 1080P / 1 x VGA

Compresie: H.265/H.264

Rezolutie inregistrare:

AHD/TVI: 5MP - fiecare canal ajustabil 1fps-10fps

HD: 4MP - fiecare canal ajustabil 1fps‐15fps

HD: 1080P/720P - fiecare canal ajustabil 1fps‐15fps

Analog: 960H - fiecare canal ajustabil 1fps‐25fps

IP: 5MP / 4MP / 3MP / 2MP / 1MP (Latime de banda ≤48M) - fiecare canal ajustabil 1fps‐25fps

Rezolutie vizualizare: 5MP/4MP/3MP/1080P/720P

Playback: Suporta playback camera HD 1/2ch@main-stream

Operatiuni simultane: vizualizare, inregistrare, playback, operare retea

IP Static, IP Dinamic si DDNS, Static, P2P, permite acces prin Internet Explorer si CMS

AI: detectie faciala

Include 2 porturi USB; 1 x RJ45 (10M/100M interfata Ethernet adaptiva)

Suporta 1 HDD SATA 2.5”/3.5” de maxim 8TB (HDD-ul nu este inclus)

Back-up: USB2.0 (precum U disk, USB Drive) si retea

Permite vizualizare de la distanta de pe telefonul mobil (iPhone, iPad, Android)

Consum: DC12V ≤2W (fara HDD)

Sistem

Procesor: Hisilicon HI3520DV400

Sistem de operare: LINUX

Video

Intrari:

Analog: Analog: 4*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Lite Mode: Analog: 4*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog + IP: 2*Analog (1080P) + 4*IP (MAX 5MP)

Network: 9*5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤48M)

Intrari: 4 canale BNC

Tip semnal: Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / IP

Iesiri: 1 port HD 1080P, 1 VGA

Alarma

Detectie la miscare: 4 canale (max 16 canale in varianta IP)

Declansare eveniment: inregistrare, email, buzzer, notificari pe ecran, notificari push (la detectia de miscare)

Alarma prin e-mail: trimite imagini pe adresa de e-mail stabilita

Functii inteligente

Comparatie fata: 1 canal stream video de comparare a fetelor

Display

Rezolutie VGA: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

Rezolutie HD 1080P: 1920 × 1080P /60Hz,  1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

Ecran impartit in: 9 canale / 4 canale / 1 canal

Privacy Masking: trei zone rectangulara (fiecare camera)

OSD: titlu camera, timp, detectie la miscare, inregistrare, pierdere semnal video

Inregistrare

Compresie video: H.265/H.264

Compresie audio: G.711u/ G.711a

Resolutie: 5MP_Lite (1296×1944), 4MP_Lite (1280×1440), 3MP_Lite (1024×1536), 1080P (1920×1080), 720P (1280×720), 960H (P:960×576/N:960×480)

Inregistrare:

Normal Mode:

Analog:  5MP_Lite (1296×1944 4*10fps), 4MP_Lite (1280×1440 4*15fps), 3MP_Lite (1024×1536 4*15fps), 1080P (1920x1080 4*15fps), 720P (1280×720 4*25fps), 960H (960×576 4*25fps)

Lite Mode:

Analog: Half 1080P (960x1080 4*25fps), 720P (1280×720 4*25fps), 960H (P:960×576 4*25fps)

Pure IP(H.265): 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps, 1080P@12×25fps, 960P@12×25fps, 720P@12×25fps, D1@12×25fps

Playback & Backup

Playback

Pure Analog: 4CH 5M_Lite@10fps, 4CH 4M_Lite@15fps, 4CH 1080p@15fps, 4CH 3MP_Lite@15fps, 4CH 1080N@25fps

Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 5M_Lite@10fps, 2CH 1080P@30fps

Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps

Playback de la distanta: 4 canale / 1 canal

Mod cautare: integral, per canal, manual, timp, data, detectie la miscare

Functii playback: play, pauza, stop, redare rapida, derulare

Playback de pe telefon: 4 canale

Mod back-up: USB (format FAT32) / Retea / FTP

Retea

Interfata: 1 RJ45 10M/100M interfata Ethernet adaptiva

Functii retea: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN

Web Browser: IE8-11, Google Chrome (sub versiunea 44), Firefox (sub versiunea 53)

Soft CMS: suporta Windows 7 / Windows 8 / W10

Extra Stream: CIF (1~25fps)

Smart Phone: iPhone, iPad, Android, Android pad

HDD

Tip interfata: 1 port SATA

Capacitate: 1 HDD SATA 2.5"/3.5" de maxim 8TB (HDD nu este inclus)

General

Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

Control UTC: da

Interfata USB: 2 USB 2.0

Consum: DC12V ≤4W (fara HDD)

Greutate: 2 kg (fara HDD)
