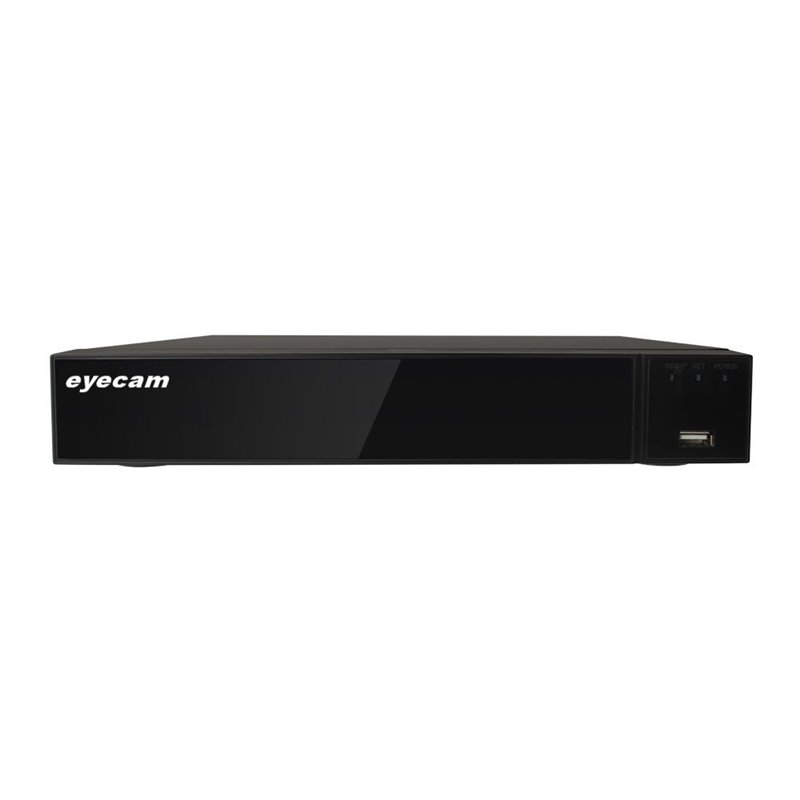

DVR 8 Canale Pentabrid 5 in 1 XVR full HD 8MP Eyecam EC-XVR4113

Caracteristici generale:

Poate fi utilizat cu orice tehnologie: Analog / AHD / HD‐CVI / HD‐TVI / IP

Tehnologie HD: Max 8CH@15fps / IP: Max 16CH@30fps / Analog: Max 8CH@30fps

Iesiri video: 1 x port HD (max. 4K) / 1 x VGA

Intrari / Iesiri Audio: RCA 4 intrari / 1 iesire

Compresie: H.264/H.264+/H.265

Rezolutie inregistrare:

AHD/TVI: 5MP - fiecare canal ajustabil 1fps-6fps

AHD/TVI/CVI: 4MP - fiecare canal ajustabil 1fps‐8fps

AHD/TVI: 3MP - fiecare canal ajustabil 1fps‐9fps

HD: 1080P/720P - fiecare canal ajustabil 1fps‐15fps

Analog: 960H - fiecare canal ajustabil 1fps‐25fps

IP: 8MP / 6MP / 5MP / 4MP / 3MP / 2MP / 1MP (Latime de banda ≤80M) - fiecare canal ajustabil 1fps‐25fps

Rezolutie vizualizare: 5MP/4MP/3MP/1080P/720P

Playback: Suporta playback pe un canal / pe 8 canale

Operatiuni simultane: vizualizare, inregistrare, playback, operare retea

IP Static, IP Dinamic si DDNS, Static, P2P, permite acces prin Internet Explorer si CMS

Include 2 porturi USB; 1 x RS485; 1 x RJ45 (10M/100M interfata Ethernet adaptiva)

Suporta 1 HDD SATA 2.5”/3.5” de maxim 6TB (HDD-ul nu este inclus)

Back-up: USB2.0 (precum U disk, USB Drive) si retea

Permite vizualizare de la distanta de pe telefonul mobil (iPhone, iPad, Android)

Consum: DC12V ≤6W (fara HDD)

Sistem

Procesor: Hisilicon HI3521D

Sistem de operare: LINUX

Video

Intrari:

Analog: 8*(TVI/AHD: 5MP; AHD/TVI/CVI: 4MP;  AHD/TVI: 3MP;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)

Analog + Network:

-          6*Analog(1080P) + 3*network(Max 8MP)

-          4*Analog(1080P)+5*network(Max 8MP)

-          2*Analog(1080P)+7*network(Max 8MP)

Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤80M)

Intrari: 8 canale BNC

Tip semnal: Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / IP

Iesiri: 1 port HD 1080P, 1 VGA

Audio

Intrari: 4 canale RCA

Iesiri: 1 canal RCA

Alarma

Detectie la miscare: 4 canale (max 16 canale in varianta IP)

Declansare eveniment: inregistrare, email, buzzer, notificari pe ecran, notificari push (la detectia de miscare)

Alarma prin e-mail: trimite imagini pe adresa de e-mail stabilita

PTZ

Interfata: RS485

Protocol: Pelco-D, Pelco-P

Baud Rate: 110 ~ 921600

Adresa: 0~255

Display

Rezolutie VGA: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

Rezolutie HD: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

Ecran impartit in: 16 canale / 9 canale / 8 canale / 4 canale / 1 canal

Privacy Masking: trei zone rectangulara (fiecare camera)

OSD: titlu camera, timp, detectie la miscare, inregistrare, pierdere semnal video

Inregistrare

Compresie video: H.264/H.264+/H.265/H.265+

Compresie audio: G711u

Resolutie: 5MP(2592×1944), 5MP_LITE(1296×1944), 4MP(2560×1440), 4MP_LITE(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)

Inregistrare:

Analog:  PAL: 5MP(2592×1944 8*6fps), 5MP_LITE(1296×1944 8*10fps), 4MP(2560×1440 8*8fps), 4MP_LITE(1280×1440 8*15fps), 3MP(2048×1536 8*9fps), 1080P(1920x1080 8*15fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps)

Pure IP (H.265): PAL: 4k@8x25fps, 5MP@12x25fps, 4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps

Mod inregistrare: manual / programat / la detectia de miscare

Playback & Backup

Playback

Analog: 8CH 5M@6fps, 8CH 4M@7fps, 8CH 3M@9fps, 8CH 1080P@15fps

Mod mixt: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP fps, 2CH 3MP@30fps

IP: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Playback de la distanta: 4 canale / 1 canal

Mod cautare: integral, per canal, manual, timp, data, detectie la miscare

Functii playback: play, pauza, stop, redare rapida, derulare

Playback de pe telefon: 4 canale

Mod back-up: USB (format FAT32) / Retea

Retea

Interfata: 1 RJ45 10M/100M interfata Ethernet adaptiva

Functii retea: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE

Web Browser: IE8-11, Google Chrome (sub versiunea 44), Firefox (sub versiunea 53)

Soft CMS: suporta Windows 7 / Windows 8 / W10

Extra Stream: CIF (1~25fps)

Smart Phone: iPhone, iPad, Android, Android pad

HDD

Tip interfata: 1 port SATA

Capacitate: 1 HDD SATA 2.5"/3.5" de maxim 6TB (HDD nu este inclus)

General

Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

Control UTC: da

Interfata USB: 2 USB 2.0

Consum: DC12V ≤6W (fara HDD)

Greutate: 2 kg (fara HDD)
