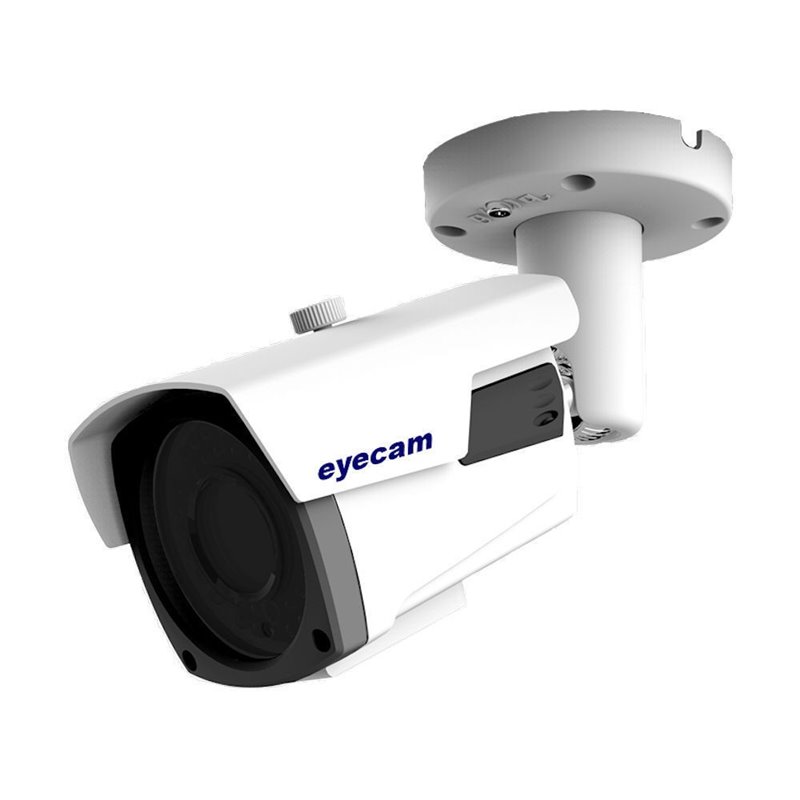

Camera supraveghere exterior 8MP 40m Eyecam EC-AHDCVI4178

Iesire video: 4 in 1 (Analog / AHD / CVI / TVI). Rezolutie: AHD/TVI: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/15fps; CVI: 8M@15fps/12.5fps, 4M/2M@30fps. Lentila: 2.8 - 12mm. Leduri infra-rosu: 42µ x 4PCS. Distanta de iluminare: 40M.

Caracteristici tehnice:

Camera

Iesire video: 4 in 1 (Analog / AHD / CVI / TVI)

Senzor Imagine: 1/2.5" senzor CMOS

Rezolutie imagine: 8M: 3840*2160; 5M: 2592*1944; 4M: 2560*1440; 2M: 1920*1080

Rezolutie: AHD/TVI: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/15fps, 2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 4M@30fps/25fps, 2M@30fps/25fps

Shutter electronic: Auto

Modalitate scanare: Scanare progresiva

Lentila

Lentila varifocala: 2.8 - 12mm

Control focus: Manual

Tip lentila: Manual

Vizibilitate noaptea

Filtru IR-cut: Da

Leduri infra-rosu: 42µ x 4PCS

Distanta de iluminare: 40M

Stare IR: control automat AGC

Caracteristici camera

Zi/noapte: Da

Meniu OSD: Da

White balance: Auto/manual

Gain control: Auto

Reducere zgomot: 3DNR

WDR: DWDR

UTC: Da

General

Carcasa: rezistenta la intemperii

Suport: inclus

Temperatura de operare: -10℃ ~ +60℃ RH95% Max

Alimentare: DC12V±10%, 750mA (alimentatorul nu este inclus)

Greutate: 1.5kg
