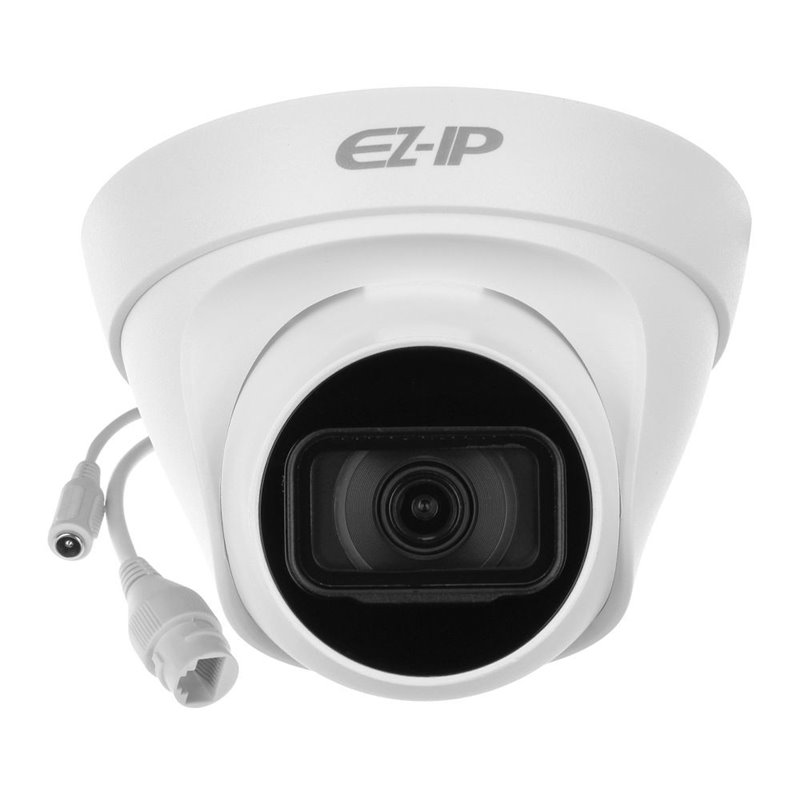

Camera IP turret 4MP 2.8mm Dahua IPC-T1B40

Caracteristici generale:

1/3” Senzor CMOS 4MP cu scanare progresiva

Compresie video: H.265+/H.265 dual stream

Rezolutie: 20fps@4MP (2560x1440), 25/30fps@3MP (2304x1296)

Functii: DWDR, zi/noapte (ICR), 3DNR, AWB, AGC, BLC

Monitorizare multipla: web viewer, CMS(DSS/PSS), DMSS

Lentila: 2.8mm

Distanta maxima iluminare noaptea: 30m

IP67, PoE

Specificatii tehnice

Camera

Senzor imagine: 1/3” Senzor CMOS 4MP cu scanare progresiva

Pixeli efectivi: 2560(H)x1440(V)

RAM/ROM: 256MB/16MB

Scanare sistem: progresiv

Iluminare minima: 0.09Lux/F2.0( Color,1/3s,30IRE) / 0.5Lux/F2.0( Color,1/30s,30IRE) / 0Lux/F2.0(IR on)

S/N Ratio: >50dB

Distanta IR: maxim 30m

Control IR On/Off : Auto/ Manual

Leduri IR: 1

Lentila

Tip lentila: Fixa

Lentila: 2.8mm

Apertura: F2.0

Unghi de vizualizare: H: 101˚, V:54˚

Control focus: fix

DORI

Detectie: 56m

Observare: 22.4m

Recunoastere: 11.2m

Identificare: 5.6m

Video

Compresie: H.265/H.264/MJPEG (sub stream)

Smart codec: H.265+/H.264+

Stream: dual stream

Rezolutie: 4M (2560x1440) / 3M (2304×1296) / 1080P (1920×1080) / 720P (1280×720) / VGA (640×480) / D1 (704×576/704×480) / CIF (352×288/352×240)

Frame Rate:

Main Stream: 4MP(1~20fps)

Sub Stream: D1(1 ~ 25/30fps)

Control bit rate: CBR/VBR

Bit rate: H.265: 12K~6144K / H.264:32K ~6144K

Zi/noapte: Auto(ICR) / Color / B/W

Mod BLC: BLC / HLC / DWDR

White Balance: Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control: Auto/Manual

Reducere zgomot: 3D DNR

Detectie la miscare: Off / On (4 Zone, Rectangle)

ROI: Off / On (4 Zone)

Smart IR: Da

Digital Zoom: 16x

Flip: 0°/90°/180°/270°

Mirror: Off / On

Privacy Masking: Off / On (4 arii, Rectangle)

Retea

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH

Compatibilitate: ONVIF Profil S&G, API

Metoda streaming: Unicast / Multicast

Numar maxim utilizatori: 10 utilizatori/20 utilizatori

Stocare: NAS / inregistrare locala pe PC

Web Viewer: IE, Chrome, Firefox, Safari

Management Software: Smart PSS, DSS, DMSS

Smart Phone: IOS, Android

Electric

Alimentare: DC12V, PoE (802.3af)(Clasa 0)

Consum: <4.8W

Conditii de operare

Conditii operare: -30° C ~ +60° C / umiditate sub 95% RH

Protectie la apa: IP67

Constructie

Carcasa: Metal + plastic

Dimensiuni: Φ109mm×85.5mm

Greutate neta: 0.25kg
