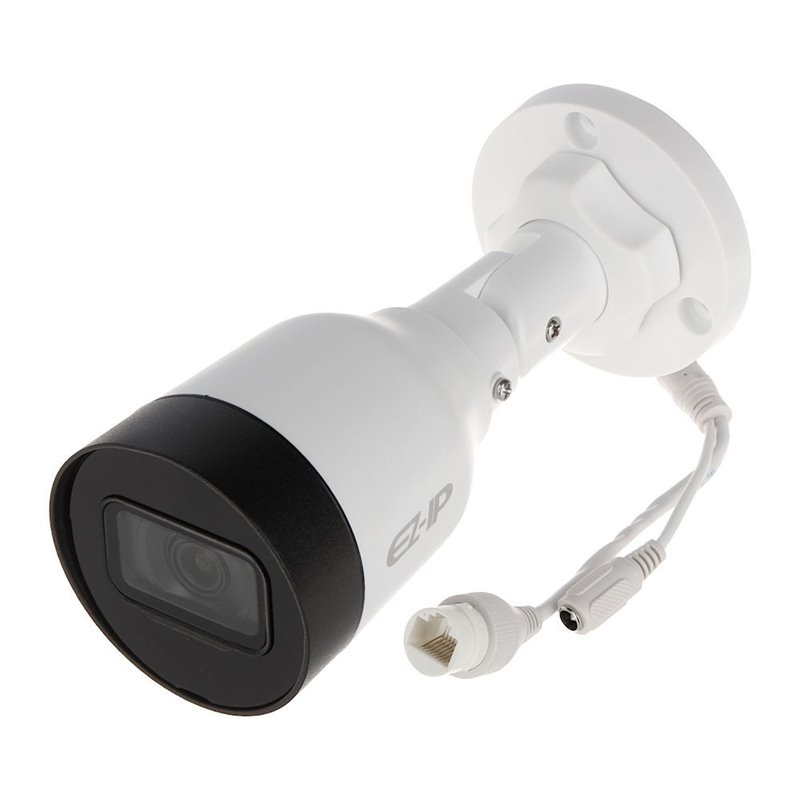

Camera IP exterior 2MP 2.8mm Dahua IPC-B1B20

Caracteristici generale:

1/2.7” Senzor CMOS 2MP cu scanare progresiva

Compresie video: H.265+/H.265 dual stream

Rezolutie: Max 25/30fps@1080P (1920x1080)

Functii: DWDR, zi/noapte (ICR), 3DNR, AWB, AGC, BLC, DMSS

Lentila: 2.8mm

Distanta maxima iluminare noaptea: 30m

IP67, PoE

Specificatii tehnice

Camera

Senzor imagine: 1/2.7” Senzor CMOS 2MP cu scanare progresiva

Pixeli efectivi: 1920(H)x1080(V)

RAM/ROM: 64MB/16MB

Scanare sistem: progresiv

Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s

Iluminare minima: 0.09Lux/F2.0( Color,1/3s,30IRE) / 0.5Lux/F2.0( Color,1/30s,30IRE) / 0Lux/F2.0(IR on)

S/N Ratio: >50dB

Distanta IR: maxim 30m

Control IR On/Off : Auto/ Manual

Leduri IR: 1

Lentila

Tip lentila: Fixa

Lentila: 2.8mm

Apertura: F2.0

Unghi de vizualizare: H: 115˚, V:60˚

Control focus: fix

DORI

Detectie: 43.5m

Observare: 17.4m

Recunoastere: 8.7m

Identificare: 4.3m

Video

Compresie: H.265/H.264/MJPEG (sub stream)

Smart codec: H.265+/H.264+

Stream: dual stream

Rezolutie: 1080P(1920×1080) / 1.3M(1280×960) /

720P(1280×720) / D1(704×576/704×480) // VGA(640×480) / CIF(352×288/352×240)

Frame Rate:

Main Stream: 1080P(1~25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Control bit rate: CBR/VBR

Bit rate: H.265: 12K~6400K / H.264:32K ~8192K

Zi/noapte: Auto(ICR) / Color / B/W

Mod BLC: BLC / HLC / DWDR

White Balance: Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control: Auto/Manual

Reducere zgomot: 3D DNR

Detectie la miscare: Off / On (4 Zone, Rectangle)

ROI: Off / On (4 Zone)

Smart IR: Da

Digital Zoom: 16x

Flip: 0°/90°/180°/270°

Mirror: Off / On

Privacy Masking: Off / On (4 arii, Rectangle)

Retea

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS; IPV4; NTP; Multicas; ICMP; IGMP

Compatibilitate: ONVIF Profil S

Metoda streaming: Unicast / Multicast

Numar maxim utilizatori: 10 utilizatori/20 utilizatori

Web Viewer: IE, Chrome, Firefox, Safari

Management Software: Smart PSS, DSS, DMSS

Smart Phone: IOS, Android

Electric

Alimentare: DC12V, PoE (802.3af)(Clasa 0)

Consum: <4.2W

Conditii de operare

Conditii operare: -30° C ~ +60° C / umiditate sub 95% RH

Protectie la apa: IP67

Constructie

Carcasa: Metal + plastic

Dimensiuni: Φ70mm×162.6mm

Greutate neta: 0.22kg
