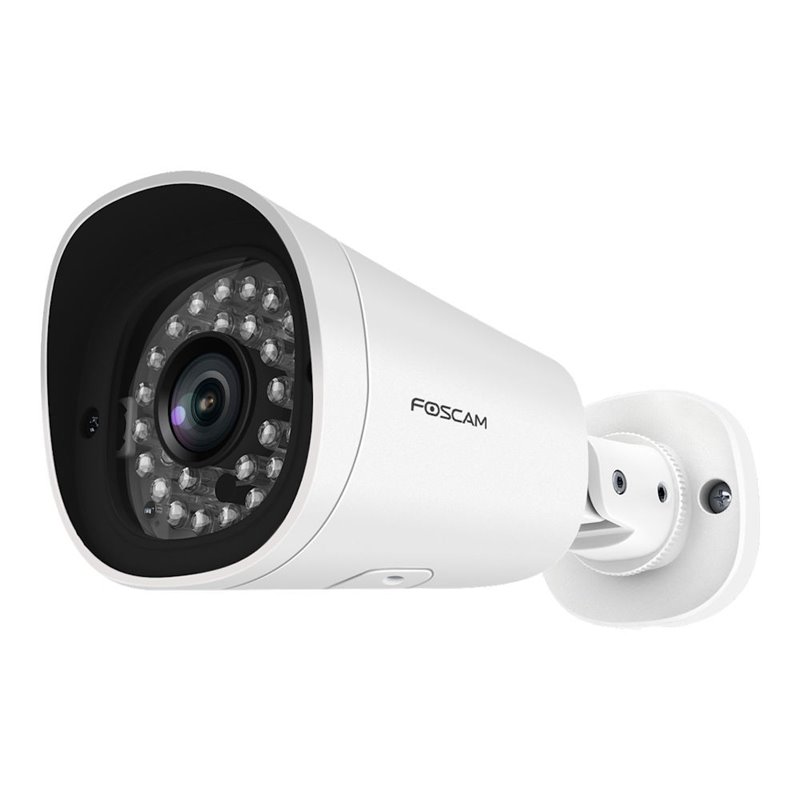

Camera IP POE Foscam G4EP 4MP

Tip senzor: 1/2.6'' CMOS

Rezolutie: 2K (2304x1536)

Frame Rate: 20fps 2K /25fps 3MP /25fps (1080P)

Iluminare minima: 0 Lux (cu iluminator)

Tip lentila: f: 4mm, F2.2

Unghi vizualizare: orizontala: 89° diagonala: 112°

Compresie video: H.264

Rezolutie: 2K (2304x1536) 20fps, 3MP (1204x1440)25fps, 1080P (1920x1080) 25fps, 720P (1280 x 720), VGA (640 x 480), QVGA (320 x 240)

Stream: dual stream

Ajustare imagine: luminozitate, contrast, saturare etc.

Flip image: flip si mirror

Mod infrarosu: automat sau manual

Vizibilitate noaptea: 30 leduri IR, pana la 20M

Audio Input/Output: interfata RCA externa pentru audio full duplex

Ethernet: port RJ45 10/100Mbps

Network Protocol: IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF

Acces remote: P2P, DDNS

Sistem operare: Microsoft Windows XP,7,8,10;Mac OS;iOS Android

Browser: Microsoft IE9 and above version, Edge; Mozilla Firefox; Google Chrome; Apple Safari.

Detectie la miscare: alarma via E-Mail, incarca snapshot prin FTP si aplicatia de mobil

Conturi utilizator: trei niveluri de utilizator

Filtrare IP: da

Inregistrare: slot card 128G (cardul nu este inclus), local, prin FTP storage, Foscam cloud storage

Alimentare: DC 12V/1A

Consum: ＜6W

Dimensiuni (mm): 97(L)×67(W)×64(H)

Greutate: 375g

Temperatura operare: -20°C ~ 60° (14°F ~ 104°F)

Umiditate operare: 10% ~ 80% non-condensing

Certificari: CE, FCC, RoHS, WEEE
