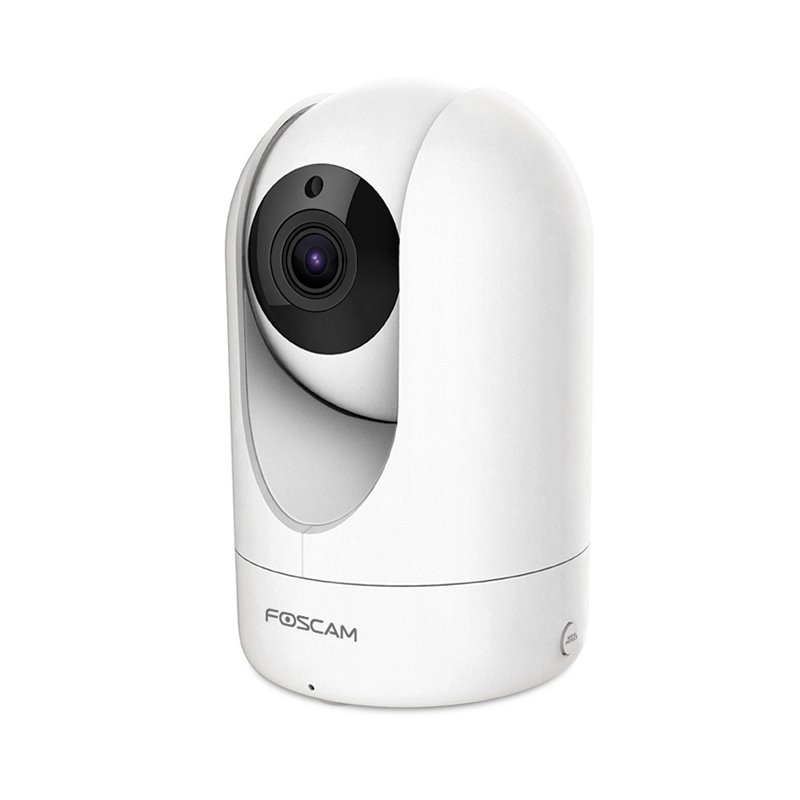

Camera IP Wireless Foscam R4M PTZ 4MP

Tip senzor: 1/2.6'' CMOS

Rezolutie: 2K (2304x1536)

Frame Rate: 20fps 2K /25fps 3MP /25fps (1080P)

Iluminare minima: 0 Lux (cu iluminator)

Tip lentila: f: 4mm, F2.2

Unghi vizualizare: orizontala: 89° diagonala: 112°

Compresie video: H.264

Rezolutie: 2K (2304x1536) 20fps, 3MP (1204x1440)25fps, 1080P (1920x1080) 25fps, 720P (1280 x 720), VGA (640 x 480), QVGA (320 x 240)

Stream: dual stream

Ajustare imagine: luminozitate, contrast, saturare etc.

Flip image: flip si mirror

Mod infrarosu: automat sau manual

Pan/tilt: orizontala: 350° & verticala: 100°

Vizibilitate noaptea: 13 leduri IR, pana la 10M

Audio Input/Output: da

Incorporat microfon si difuzor

Compresie audio: PCM/G.726

Retea

Ethernet: port RJ45 10/100Mbps

Wireless Standard: 2.4G/5G dual-band, IEEE802.11b/g/n

Data Rate: IEEE802.11b: 11Mbps (Max.); IEEE802.11g: 54Mbps (Max.); IEEE802.11n: 150Mbps (Max.).

Wireless Security: WPA, WPA2

Wireless Setup: suporta EZLink & QR Code + Wave  wireless setup

Network Protocol: IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF

Acces remote: P2P, DDNS

Sistem operare: Microsoft Windows XP,7,8,10;Mac OS;iOS Android

Browser: Microsoft IE9 and above version, Edge; Mozilla Firefox; Google Chrome; Apple Safari.

Detectie la miscare: alarma via E-Mail, incarca snapshot prin FTP si aplicatia de mobil

Detectie la sunet: alarma via E-Mail, incarca snapshot prin FTP si aplicatia de mobil

WDR: imbunatateste calitatea imaginii

Zoom: zoom digital 6X

Conturi utilizator: trei niveluri de utilizator

Filtrare IP: da

Inregistrare: slot card 128G (cardul nu este inclus), local, prin FTP storage, Foscam cloud storage

Alimentare: DC 5V/2A

Consum: ＜6W

Dimensiuni (mm): 74(L)×74(W)×119(H)

Greutate: 290g

Temperatura operare: -10°C ~ 40° (14°F ~ 104°F)

Umiditate operare: 20% ~ 85% non-condensing

Certificari: CE, FCC, RoHS,WEEE
