DESCARCATI MANUALUL DE UTILIZARE - CAMERA WIRELESS FOSCAM R2M

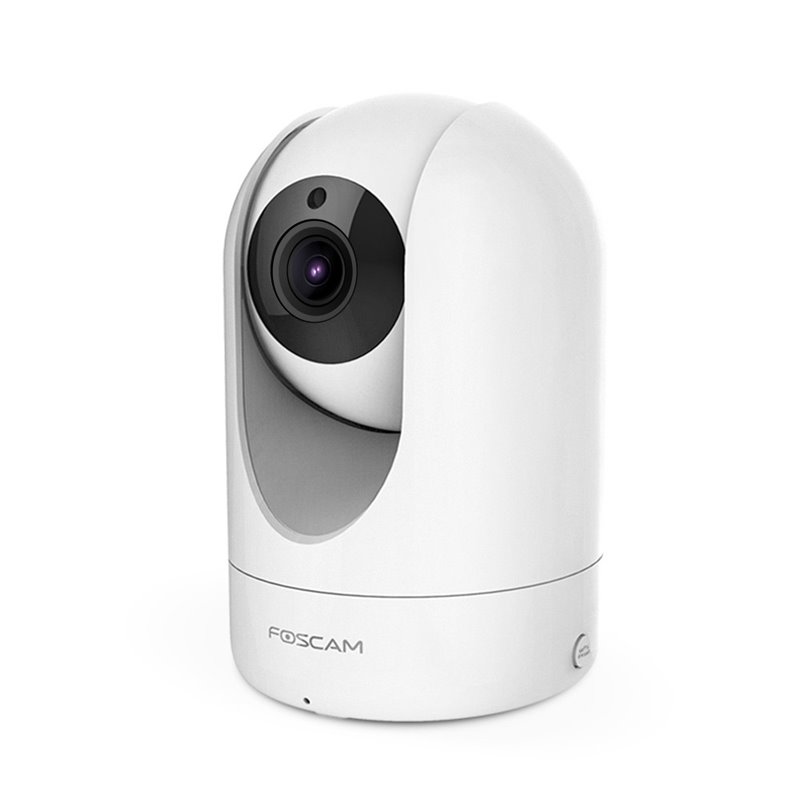

Camera IP Wireless Foscam R2M PTZ full HD

CPU: MSC316DC

Tip lentila: f: 4mm, F: 2.0

Tip senzor: 1/2.7'' CMOS

Unghi de vizualizare: orizontala: 90° / diagonala: 100°

Iluminare minima: 0 Lux (cu iluminator pornit)

Rezolutie: 2.0MegaPixels (1920*1080)

IR-LED: 13 leduri IR

Vizibilitate noaptea: 8m

Mod infrarosu: automat sau manual

IR-CUT: da

Frame Rate: 25fps 1080P / 11fps 720P

Rezolutie: 1080P (1920x1080), 720P (1280 x 720), VGA (640 x 480), QVGA (320 x 240)

Ajustare imagine: luminozitate, contract, grad saturare etc.

Rotire fip/mirror: da

WDR: imbunatateste claritatea imaginii in diferite conditii de lumina

Compresie video: H.264

Stream: dual stream

Protocol retea: IP TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, WPS, ONVIF

P2P: da

ONVIF: da

Built-in DDNS Server: da

Alimentare: DC 5V/2.0A

Ethernet: port RJ45 10/100Mbps

Slot card extern: da (cardul nu este inclus)

SD Management: da

Reset: buton reset

Audio bidirectional: da

Incorporat microfon si difuzor: da

Standard Wireless: IEEE802.11b/g/n

Wireless Security: WEP, WPA, WPA2

Data Rate: IEEE802.11b: 11Mbps (Max.); IEEE802.11g: 54Mbps (Max.); IEEE802.11n: 150Mbps (Max.).

EZLink: da

WPS: da

Detectie la miscare: da

Detectie la sunet: da

Inregistrare alarma: da

Alarma prin E-mail/FTP: da

Suporta micro SD card de maxim 128GB (cardul nu este inclus)

Preset: da

Cruise: da

Multi-camera: da

Snapshot: da

Playback: da

DST: da

Cloud Storage: da

Pushing message: da

Conturi utilizator: trei niveluri de utilizator

Filtrare IP: da

Sistem operare: Microsoft Windows XP, 7, 8; Mac OS; iOS; Android

Browser: Microsoft IE8 and above version or compatible browser; Google Chrome; Apple Safari.

Dimensiune (LxWxH): 74(L)×74(W)×119(H)

Greutate: 290g

Consum: <6W

Temperatura de operare: -10°C ~ 40°

Umiditate de operare: 20% ~ 85% non-condensing

Certificari: CE, FCC, RoHS, WEEE
