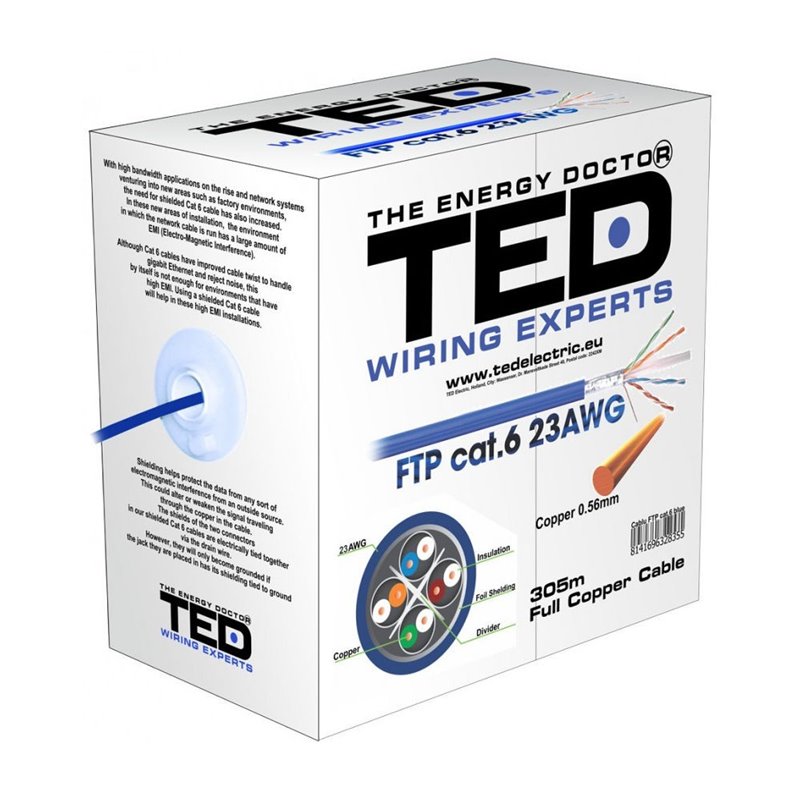

Cablu FTP categoria 6 / 2 x 4 fire CUPRU 0,52 albastru
Cablu FTP categoria 6 / 2 x 4 fire CUPRU 0,52 albastru TED. Se vinde la rola de 305M.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Cablu FTP categoria 6 / 2 x 4 fire CUPRU 0,52 albastru
Construction
Conductor: Foil Screened 4 x 2 x 0.51 mm Full Copper 24 AWG
Insulation: 0.9 mm High-density Polyethylene
Diameter Over Insulation: 1 mm
Nominal Outer Diameter: 6 mm
Mechanical Characteristics
Sheath Tensile Strength: 20.2 MPa
Minimum Bending Radius: 40 mm
Normal Weight: 38 kg/km
Operating Temperature: -10 degrees C / + 60 degrees C
Instalation Temperature: -5 degrees C / + 40 degrees C
Product Length: 305m in Carton Box
Electrical Performance
Conductor Resistance: 89 Ohms/km
Characteristic Impedance (Ohms): 100+/-15
Screw (ns/100m): 45
Nominal Velocity of Propagation: 68%,
Propagation Delay, max. 100 MHz (ns/100m): 536
Coupling Attenuation at 30 MHz: 68
Se vinde la rola de 305M.
TE088587
