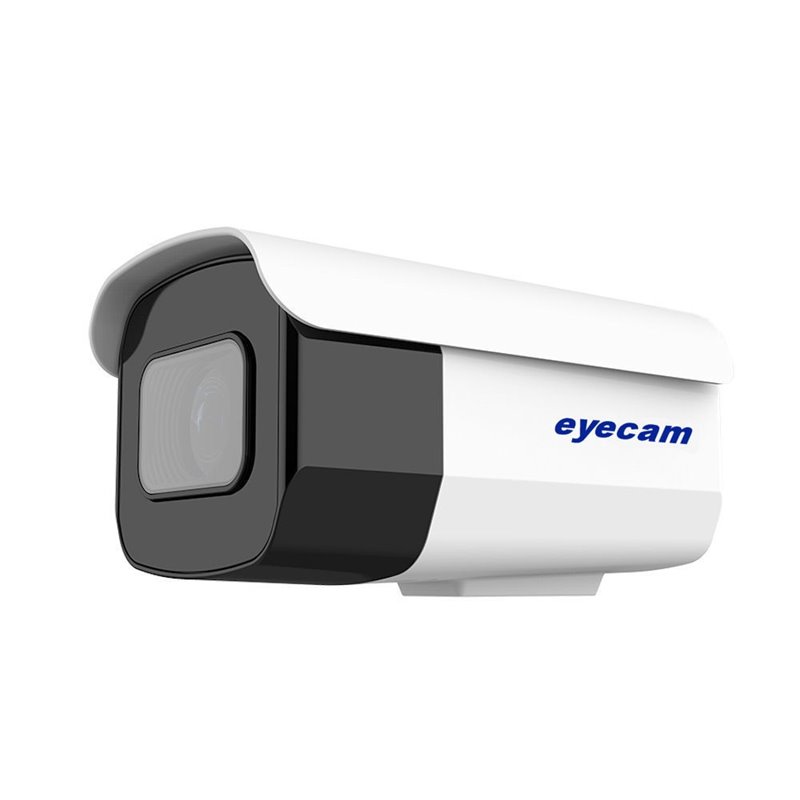

Camera IP exterior 8MP POE 3X Eyecam EC-1410

Senzor si DSP: OS08A10 + Hi3516A. Compresie: H.264/H.264+/H.265/H.265+. Rezolutie: 8MP. 1/1.8" Senzor CMOS Omnivision, functie WDR; filtru IR-Cut. Modul POE. Alarma in/out. Audio in/out. Slot card extern (suporta card de maxim 128GB – nu este inclus). Distanta IR: 60M, lentila varifocala motorizata 3.6 – 11mm, auto focus.

Camera

Senzor imagine: 1/1.8" Senzor CMOS Omnivision de inalta-rezolutie

Rezolutie: 8MP

Pixeli efectivi: 3840(H)*2160(V)

Compresie: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG

Sistem TV: PAL/NTSC

Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Iluminare minima: 0.01Lux

S/N Ratio: ≥52dB

Sistem scanare: Progresiva

Iesire video: Retea

Lentila

Lungime focus: incorporata lentila motorizata 3.6 – 11mm

Control focus: Auto

Tip lentila: Auto

Pixeli: 8Mp

Iluminare pe timp de noapte

Leduri IR: 42µ x 6PCS

Distanta IR: 60M

Status IR: Control automat

Stare IR: Control automat

Retea

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP

ONVIF: Suporta ONVIF 2.4

P2P: da, cod QR

Modul POE: Da, IEEE 802.3af

Intarziere video: 0.3S (prin Lan)

Main Stream 1: 3840*2160 @20fps / 3072*2048@30fps

Main Stream 2: 2592*1944@30fps / 2560*1920@30fps

Main Stream 3: 2560*1440@30fps / 1920*1080@30fps / 1280*720@30fps

Sub Stream 1: 720*480@30fps

Tri Stream: 352*288@30fps

IE Brower: IE8-11, Google Chrome (anterior Ver44), Firefox (anterior Ver53), Mac Safari (anterior ver 12)

Smart Phone: iPhone, iPad, Android, Android Pad

Specificatii camera

Zi/noapte: Color/ B&W (IR-CUT)

Configurare imagine: Saturatie/Luminozitate/Contrast /Mirror, 3D NR , White Balance, FLK(Flicker Control), Video tampering

Corridor Pattern: Da

Defog Mode: Da

ROI: Da

BLC: Da

WDR: Da

Detectie la miscare: Da

Privacy Masking: 3 zone rectangulare

Mod inregistrare: NVR/NAS/CMS/Web

Limbi disponibile: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands

Interfata

Audio: audio bidirectional

Alarma: 1 in / 1 out

Slot card: Da, suporta card de maxim 128GB – cardul nu este inclus

Specificatii generale

Carcasa: rezistenta la intemperii

Filtru IR-Cut: Da

Temperatura operare: -20℃ ~ +60℃ RH95% Max

Alimentare: DC12V±10%, 1100mA - nu este inclusa

Dimensiuni: 170 x 110 x 101 mm

Greutate: 2 kg
