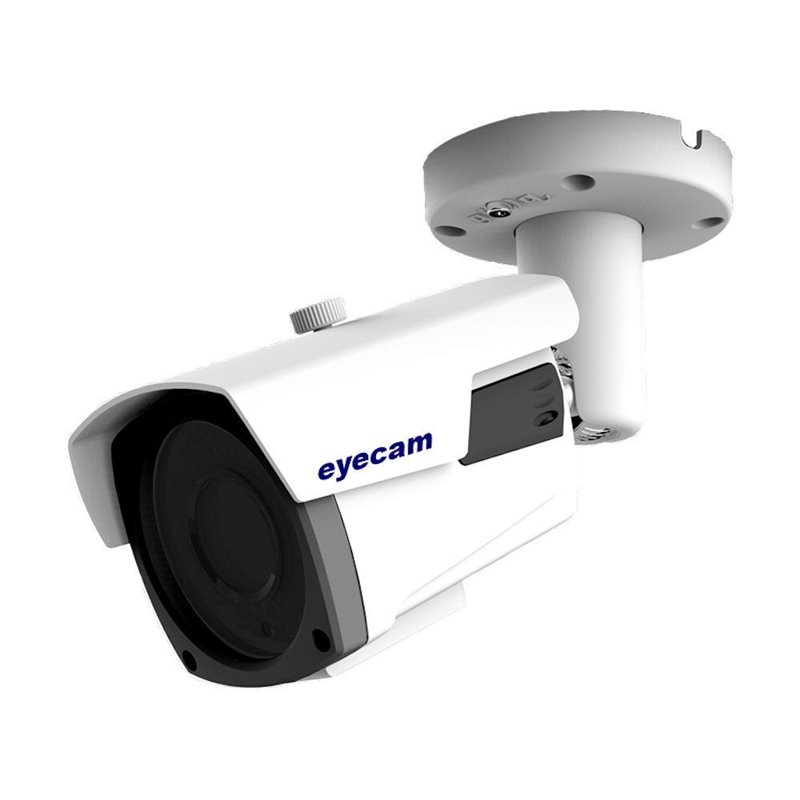

Camera IP exterior 5MP POE Sony Starvis Eyecam EC-1403
Camera IP exterior 5MP POE Sony Starvis Eyecam EC-1403. Senzor si DSP: IMX335 + Hi3516D. Compresie: H.264/H.264+/H.265/H.265+. Rezolutie: 5MP. 1/2.8" Senzor Sony Starvis Back-illuminated, functie WDR; filtru IR-Cut. Modul POE. Distanta IR: 40M, lentila varifocala motorizata 2.7 – 13.5mm.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Camera IP exterior 5MP POE Sony Starvis Eyecam EC-1403
Senzor si DSP: IMX335 + Hi3516D. Compresie: H.264/H.264+/H.265/H.265+. Rezolutie: 5MP. 1/2.8" Senzor Sony Starvis Back-illuminated, functie WDR; filtru IR-Cut. Modul POE. Distanta IR: 40M, lentila varifocala motorizata 2.7 – 13.5mm.
Camera
Senzor imagine: 1/2.8" SONY Starvis Back-illuminated CMOS Sensor IMX335
Rezolutie: 5MP
Pixeli efectivi: 2616(H)*1964(V)
Compresie: H.264/H.264+/H.265/H.265+/JPEG/AVI
Sistem TV: PAL/NTSC
Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio: ≥52dB
Sistem scanare: Progresiva
Iesire video: Retea
Lentila
Lungime focus: incorporata lentila motorizata 2.7 – 13.5mm
Control focus: Auto
Tip lentila: Motorizata
Pixeli: 5Mp
Iluminare pe timp de noapte
Leduri IR: 42µ x 4PCS
Distanta IR: 40M
Status IR: Control automat
Stare IR: Control automat
Retea
Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF: Suporta ONVIF 2.4
P2P: da, cod QR
Modul POE: Da
Intarziere video: 0.3S (prin Lan)
Main Stream 1: 2592*1944@20fp / 2560*1920@20fp
Main Stream 2: 2560*1440@25fp
Main Stream 3: 1920*1080@30fps / 1280*720@30fps
Sub Stream 1: 720*480@30fps
Tri Stream: 352*288@30fps
IE Brower: IE8-11, Google Chrome (anterior Ver44), Firefox (anterior Ver53), Mac Safari (anterior ver 12)
Smart Phone: iPhone, iPad, Android, Android Pad
Specificatii camera
Zi/noapte: Color/ B&W (IR-CUT)
Configurare imagine: Saturatie/Luminozitate/Contrast /Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern: Da
Defog Mode: Da
ROI: Da
BLC: Da
WDR: DWDR: 50dB
Detectie la miscare: Da
Privacy Masking: 3 zone rectangulare
Mod inregistrare: NVR/NAS/CMS/Web
Limbi disponibile: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands
Specificatii generale
Carcasa: rezistenta la intemperii
Filtru IR-Cut: Da
Temperatura operare: -20℃ ~ +60℃ RH95% Max
Alimentare: DC12V±10%, 950mA - nu este inclusa
Dimensiuni: 211 x 92 x 90 mm
Greutate: 1.4 kg
EC-1403
Data sheet
- Rezolutie
- 5MP
- Tip lentila
- Lentila varifocala
- Distanta IR
- 40m
- Accepta SD Card
- Nu
- Functie POE / POC
- Da
- Tip carcasa
- Bullet
- Tip mediu
- Exterior
Specific References
