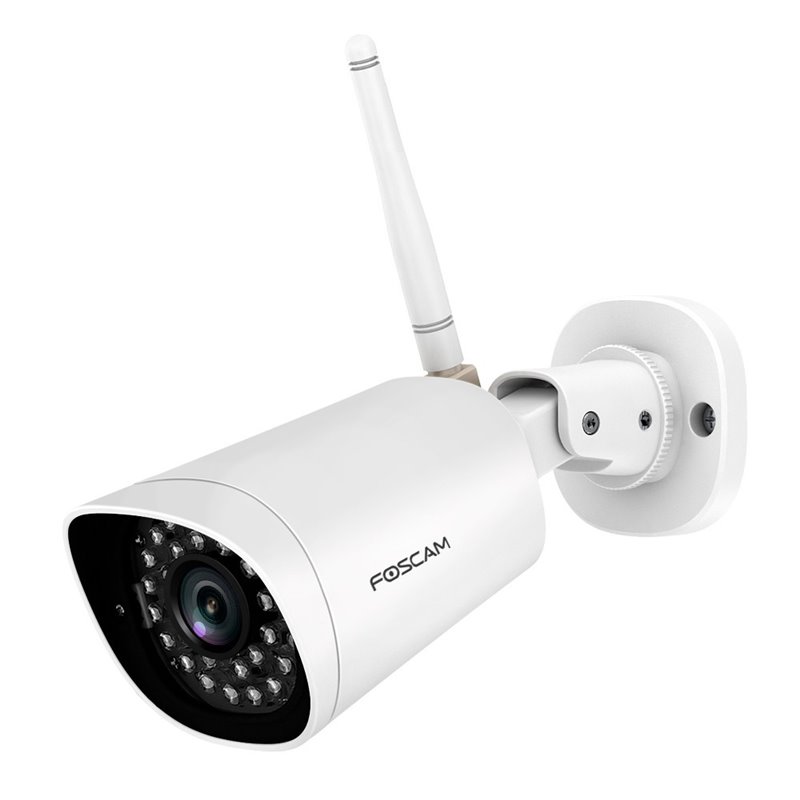

Camera IP Wireless Exterior 4MP Foscam G4

Caracteristici:

-          Camera IP exterior 4MP;

-          Compresie H.264;

-          Functie P2P pentru acces rapid;

-          Functie de detectie la miscate si alerta prin e-mail, FTP sau aplicatia de mobil;

-          Compatibila cu CMS Foscam;

-          Compatibila cu aplicatiile de mobil Foscam pentru iOS si Android;

-          Include slot pentru micro SD card extern de maxim 128GB (cardul nu este inclus);

-          Conexiune wireless IEEE 802.11b/g/n;

-          WPA si WPA2;

-          Functie audio bidirectional;

-          Functie WDR;

-          Vizibilitate noaptea pe o distanta de pana la 20M.

Specificatii tehnice:

Senzor imagine

Senzor: 1/2.6'' CMOS

Rezolutie: 2K (2304x1536)

Frame Rate: 20fps (2K)/25fps (3MP)/25fps (1080P)

Iluminare minima: 0 Lux (cu IR pornit)

Lentila

Lentila: f: 4mm, F2.2

Unghi de vizualizare: orizontal: 89°; diagonal: 112°

Video

Compresie video: H.264

Rezolutie: 2K (2304x1536) 20fps, 3MP (1204x1440)25fps,1080P(1920x1080) 25fps,720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240)

Stream:                dual stream

Ajustare imagine: luminozitate, constrast, saturatie etc

Rotire imagine: flip si mirror

Mod infrarosu: automat sau manual

Vizibilitate noaptea: 30 leduri IR cu distanta de iluminare de 20M

Audio

Input/Output: interfata RCA externa pentru audio bidirectional

Retea

Ethernet: port RJ-45 10/100Mbps

Wireless Standard: IEEE802.11b/g/n

Data Rate: IEEE802.11b: 11Mbps (Max.);

      IEEE802.11g: 54Mbps (Max.);

                    IEEE802.11n: 150Mbps (Max.).

Wireless Security: WPA, WPA2

Acces remote: P2P DDNS

Protocol retea: IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF

Cerinte sistem

Sistem de operare: Microsoft Windows 7, 8, 10; Mac OS; iOS Android

Browser: Microsoft IE9 and above version, Edge; Mozilla Firefox; Google Chrome; Apple Safari

Functii suplimentare

Detectie la miscare: alerta prin E-Mail; capture trimise prin FTP, aplicatie mobil

Cont utilizator: 3 niveluri

Stocare: suporta card de maxim 128G, locala si prin FTP; serviciu Foscam cloud

Firewall: filtrare IP

Reset: buton reset

Alimentare

Sursa alimentare: DC 12V/1.0A

Consum: 6 Watts (Max.)

IP66

Temperatura operare: -20°C~ 60°C (-4°F ~ 140°F)

Umiditate operare: 10% ~ 80% fara condens

Certificari: FCC, CE, RoHS, WEEE
