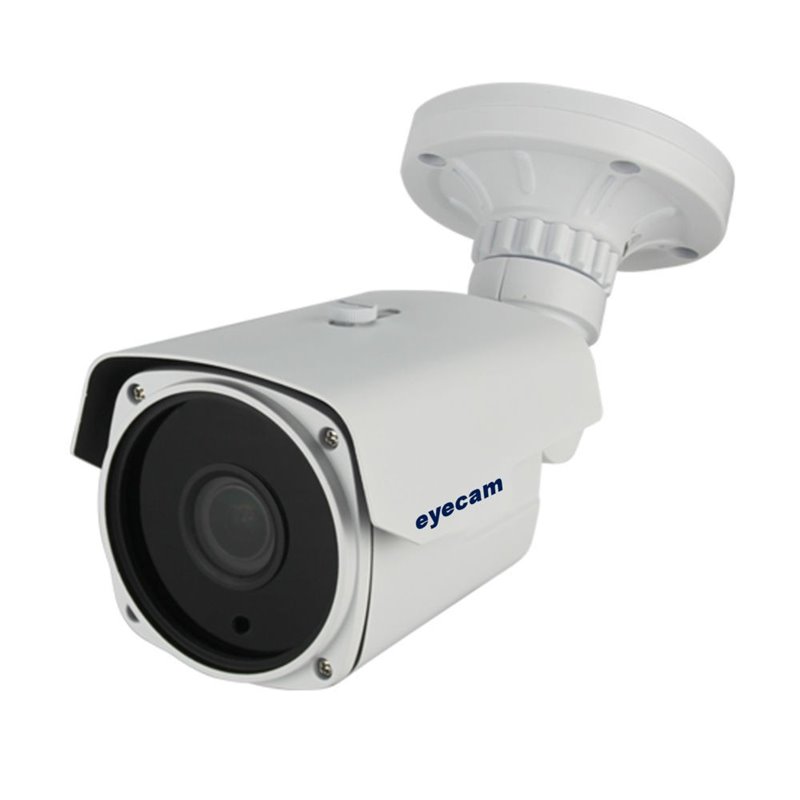

Camera IP 5MP Sony Starvis 60M Eyecam EC-1370

Senzor SONY Starvis Back-Illuminated 1/1.8", rezolutie 5MP/3MP/1080P@30fps, filtru IR-Cut, lentila HD 5MP

Procesor: Hisilicon Hi3516A, WDR, 3D NR, Low-stream

Compresie: H.265 / H.264

Lentila fixa: 3.6 mm

Incorporate 6 leduri x 42μ

Distanta de iluminare pe timp de noapte: 60M

Carcasa rezistenta la intemperii

Greutate: 1.5 KG



Specificatii tehnice

Camera

Senzor imagine: IMX178

Procesor: Hi3516A

Rezolutie imagine: 5MP

Pixeli efectivi: 2592 x 1944

Compresie. H.265 / H.264 / JPEG / AVI

Sistem: PAL / NTSC

Shutter electronic: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio: ≥52dB

Sistem scanare: Progresiva

Iesire video: Retea

Lentila

Lungime focala: 3.6 mm

Control focus: Fix

Tip lentila: Fixa

Pixeli: 5M pixeli

Vizibilitate pe timp de noapte

Leduri IR: 42µ x 6PCS

Distanta IR: 60M

Stare IR: sub 10 Lux prin CDS

IR pornit: Control automat CDS

Retea

Ethernet: RJ-45 (10/100 Base-T)

Protocol: TCP/IP,ICM,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF: 2.4

P2P: Suporta QR Code

Video Delay: 0.3S in LAN

Main stream 1: 2592*1944@30fps

Main stream 2: 2048*1536@30fps

Main stream 3: 1920*1080@30fps

Sub stream: 720*480@30fps

Tri stream: 352*288@30fps

IE Navigator: IE 8-11, Google Chrome, Firefox, Safari, Mac Safari

Smartphone: iPhone, iPad, Android, Android Pad

Caracteristici camera

Zi/noapte: Color / Alb negru

Configurare imagine: saturatie / luminozitate / contrast / oglinda / 3D NR / white balance / FLK (Flicker Control)

Corridor pattern: Da

Defog: Da

ROI: Da

BLC: Da

WDR: Da

Detectie miscare: Da

Mascare intimitate: 3 Zone Rectangulare

Inregistrare: NVR/NAS/CMS/Web

Specificatii generale

Carcasa rezistenta la intemperii

Filtru IR-Cut: Da

Temperatura de operare: -20℃ ~ +60℃ RH95% Max

Alimentare: DC12V±10%, 1000mA (alimentatorul nu este inclus)

Greutate: 1.5 kg
