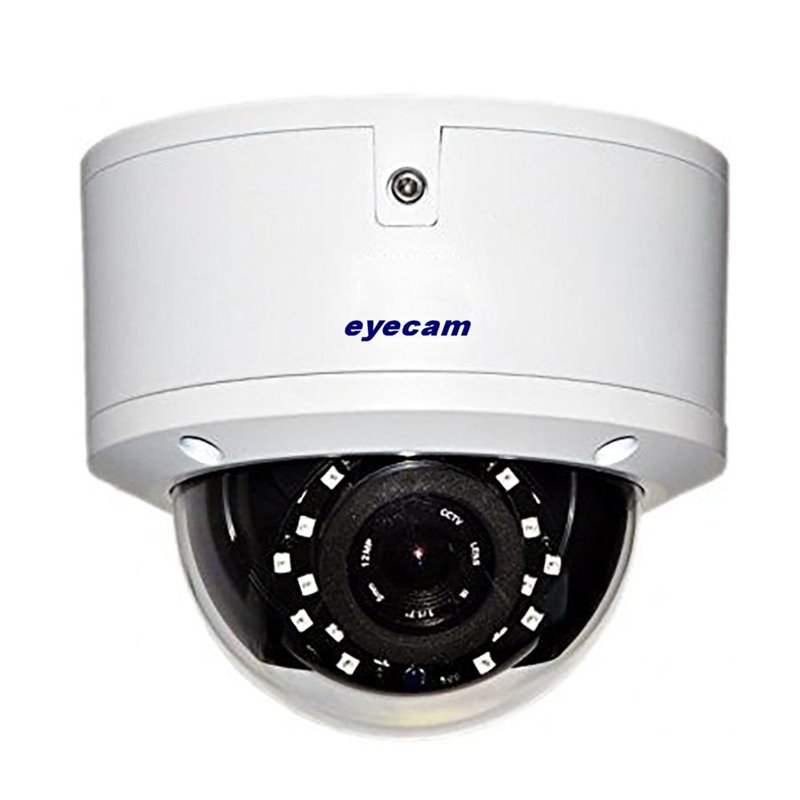

Camera IP Dome 4K Sony Starvis 20M Audio Slot Card Eyecam EC-1368

Senzor SONY Starvis Back-Illuminated 1/2.5", rezolutie 4K/5MP/3MP/1080P@30fps, filtru IR-Cut, lentila HD 12MP

Procesor: Hisilicon Hi3519, WDR

Lentila CS 5 mm

Incorporate 18 leduri x 14μ

Distanta de iluminare pe timp de noapte: 20M

Audio: In / Out

Alarma: In / Out

Slot intern SD-card de maxim 64GB (cardul nu este inclus)

Carcasa rezistenta la intemperii

Greutate: 1 KG



Specificatii tehnice

Camera

Senzor imagine: IMX274

Procesor: Hi3519

Rezolutie imagine: 4K

Pixeli efectivi: 3864 x 2218

Compresie. H.265 / H.264 / JPEG / AVI

Sistem: PAL / NTSC

Shutter electronic: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio: ≥52dB

Sistem scanare: Progresiva

Audio: Audio bidirectional (interfata audio 3.5mm)

Alarma: 1 in / 1 out

SD card: suporta card de maxim 64GB (nu este inclus)

Iesire video: Retea

Lentila

Lungime focala: lentila CS 5 mm

Control focus: Fix

Tip lentila: Fixa

Pixeli: 12M pixeli

Vizibilitate pe timp de noapte

Leduri IR: 14µ x 18PCS

Distanta IR: 20M

Stare IR: sub 10 Lux prin CDS

IR pornit: Control automat CDS

Retea

Ethernet: RJ-45 (10/100/1000 Base-T)

Protocol: TCP/IP,ICM,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF: 2.4

P2P: Suporta QR Code

Video Delay: 0.3S in LAN

Main stream 1: 3840*2160 @30fps

Main stream 2: 2592*1944@30fps

Main stream 3: 2048*1536@30fps

Main stream 4: 1920*1080@30fps

Sub stream: 720*480@30fps

Tri stream: 352*288@30fps

IE Navigator: IE 8-11, Google Chrome, Firefox, Safari, Mac Safari

Smartphone: iPhone, iPad, Android, Android Pad

Caracteristici camera

Zi/noapte: Color / Alb negru

Configurare imagine: saturatie / luminozitate / contrast / oglinda / 3D NR / white balance / FLK (Flicker Control)

Corridor pattern: Da

Defog: Da

WDR: Da

Detectie miscare: Da

Mascare intimitate: 3 Zone Rectangulare

Inregistrare: NVR/NAS/CMS/Web

Specificatii generale

Carcasa metalica rezistenta la intemperii

Filtru IR-Cut: Da

Temperatura de operare: -10℃ ~ +50℃ RH90% Max

Alimentare: DC12V±10%, 500mA (alimentatorul nu este inclus)

Greutate: 1 kg
