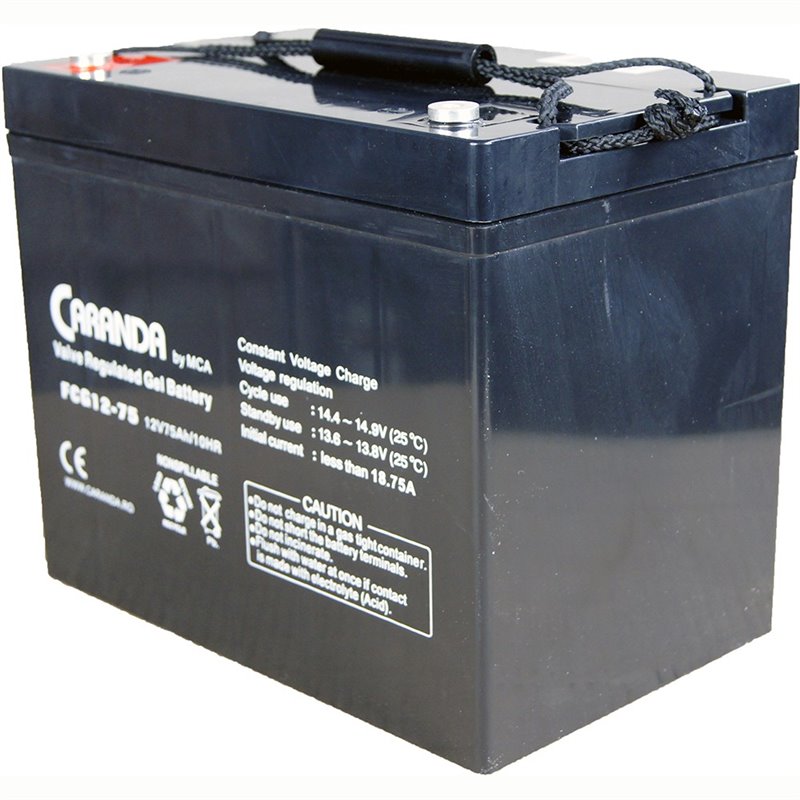

Acumulator Gel VRLA Caranda 12V 75A

Caracteristici generale:

-        Environmentally friendly

-        Wide operating temperature range

-        Nano gel electrolyte and long floating service Life

-        Can be used at vertical or horizontal orientation

-        High Power Density

-        Low self discharge

Domenii de aplicare:

-        Telecom Control Equipments

-        UPS systems

-        Communication Equipments

-        Medical Equipments

-        Emergency Power Systems

-        Security Systems

-        Cable TV

-        Railway System

Nominal Voltage: 12V(6 cells per unit)

Design Floating Life @25℃:  12 Years

Nominal Capacity @25℃( 10 hour rate@7.5A,10.80V): 75Ah

Capacity @25℃:

20 hour rate (4.01A,10.5V) 80.2Ah

5 hour rate (13.2A,10.5V) 66Ah

1 hour rate (47.9A,9.6V) 47.9Ah

Internal Resistance

Full Charged Battery@25℃: ≤6.9mΩ

Ambient Temperature

Discharge: -30℃~60℃

Charge: -30℃~60℃

Storage: -30℃~60℃

Max. Discharge Current@25℃ 750A(5s)

Capacity affected by Temperature (10 hr Capacity )

40℃: 108%

25℃: 100%

0℃: 90%

-15℃: 70%

Self-Discharge@25℃ per Month 3%

Charge (Constant Voltage) @25℃

Floating Charge: Initial Charging Current Less than 18.75A / Voltage 13.6-13.8V

Cycle Charge: Initial Charging Current Less than 18.75A / Voltage 14.4-14.9V

Dimensiuni:

Length(mm) 260±1

Width(mm) 169±1

Heighth(mm) 211±1

Total Heighth(mm) 215±1

Weight(kg) 22.2±3%
