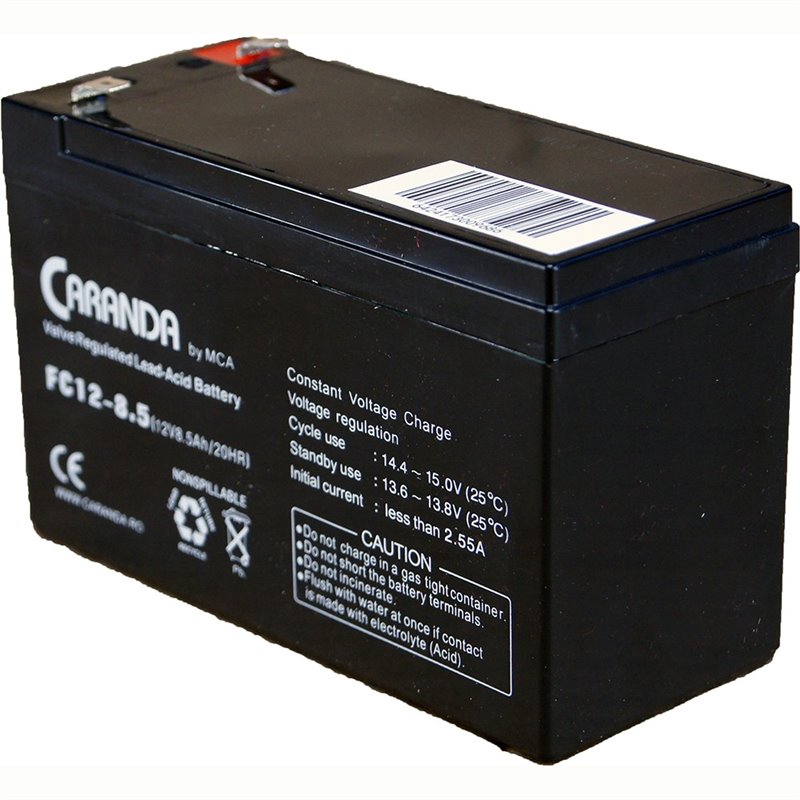

Acumulator VRLA Caranda 12V 8.5A

Caracteristici generale:

-          Can be used at vertical or horizontal orientation

-          High Reliability and Good Quality

-          High gas recombination efficiency

-          High Power Density

-          Maintenance-Free Operation

Domenii de aplicare:

-          UPS & EPS

-          Emergency lighting Systems

-          Medical Equipment

-          Cable TV Systems

-          Alarm Systems

-          Electric Test Equipment

-          Security Systems

Nominal Voltage: 12V(6 cells per unit)

Design Floating Life @25℃:  5 Years

Nominal Capacity @25℃( 20 hour rate@0.425A,10.50V): 8.50Ah

Capacity @25℃:

10 hour rate (0.8A,10.8V) 8.00Ah

5 hour rate (1.52A,10.5V) 7.60Ah

1 hour rate (5.55A,9.6V) 5.55Ah

Internal Resistance

Full Charged Battery@25℃: ≤20.0mΩ

Ambient Temperature

Discharge: -20℃~50℃

Charge: -20℃~50℃

Storage: -20℃~50℃

Max. Discharge Current@25℃ 127.5A(5s)

Capacity affected by

Temperature

(10 hr Capacity )

40℃: 102%

25℃: 100%

0℃: 85%

-15℃: 65%

Self-Discharge@25℃ per Month 3%

Charge (Constant Voltage) @25℃

Floating Charge: Initial Charging Current Less than 2.55A / Voltage 13.6-13.8V

Cycle Charge: Initial Charging Current Less than 2.55A / Voltage 14.4-14.9V

Dimensiuni:

Length(mm) 151±1

Width(mm) 65±1

Heighth(mm) 94±1

Total Heighth(mm) 100±1

Weight(kg) 2.40±3%
